C Series:
Pitch Size(mm): 1.25
Features:
- High Quality,Clear Vision.
- Wide Viewing Angle,Super Wide Gamut.
- Anti-glare Display.
- Brilliant Visual Brightness.
Applications:
Supermrket,Airport,Advertising Display,Self-service Store,Metro Station,Museum,Convenience Store,Stadium,Exhibition,Brand Chain Store,Casino,High-end Conference Room,Luxury Brand Store,Hotel,Theatre/Cinema,Stage/T Stage,Showroom,Tourist Attractions.

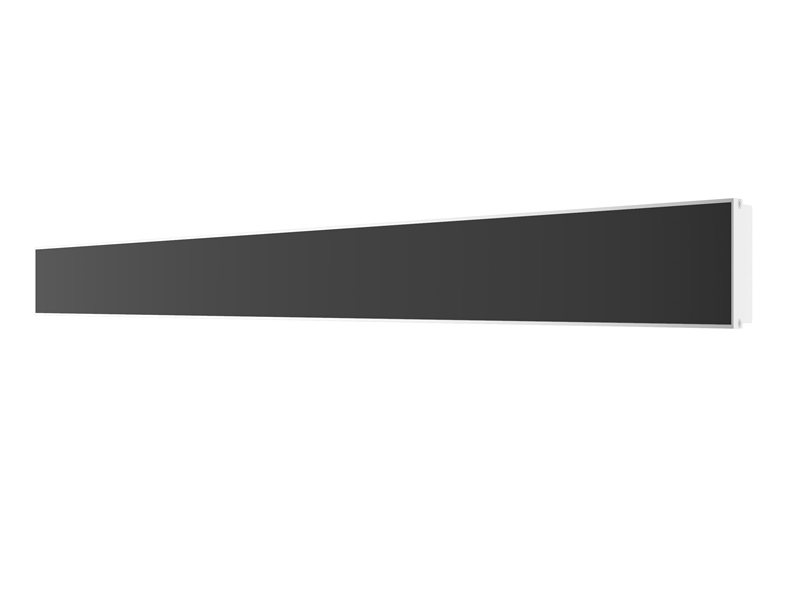

COB Shelf Display Parameters:
| Product Series | C1.25 |
|---|---|
| Pixcel Pitch(mm) | 1.25mm |
| Overall Dimension(mm) | 300(w)*60(h) |
| Brightness(cd/s.qm) | 50~500cd |
| Weight(kg) | 0.35kg |
LCD Shelf Display Parameters:
| Product Series | LCD |
|---|---|
| Case Size | 595mm(L)*60.8mm(W)*15.5mm(T) |
| Display Area | 585.6mm(L)*48.19mm(W) |
| Weight(kg) | o.82kg |
| LCD | 23”,1920*158 resolution |
| OS | Android 6.0 |
| Processor | Quad-core Cortex-A53,1.5Ghz,Built in 3D CPU |
| Memory | DDR3 RAM:1GB;eMMC ROM:8GB |
| Network | Wifi:802.11 b/g/n/ac,2.4G+5Ghz,Built-in Wifi |
| Antenna Bluetooth | BLE4.0 |
COB Shef Display Product Video:
LCD Shef Display Product Video:
Refered Cases:
P1.25
Applied in UKP1.25 COB Display
P1.25 COB Shelf Display Applied in UK
P1.25
Applied in UKP1.25 COB Display
P1.25 COB Shelf Display Applied in UK
P1.25
Applied in UKP1.25 COB Display
P1.25 COB Shelf Display Applied in UK
